Stretch Wrapping Machine Technical Parameters

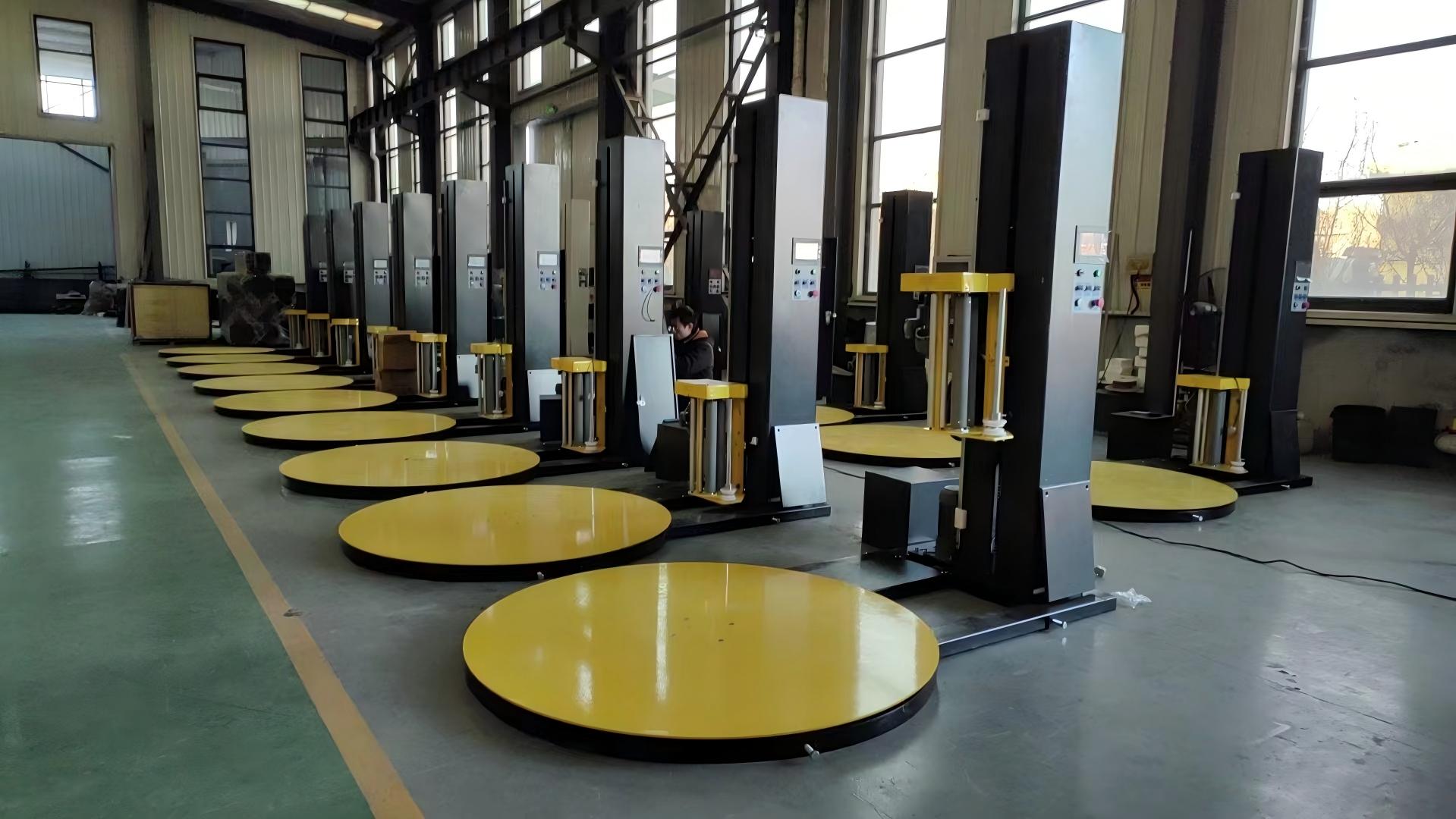

![Stretch Wrapping Machine]()

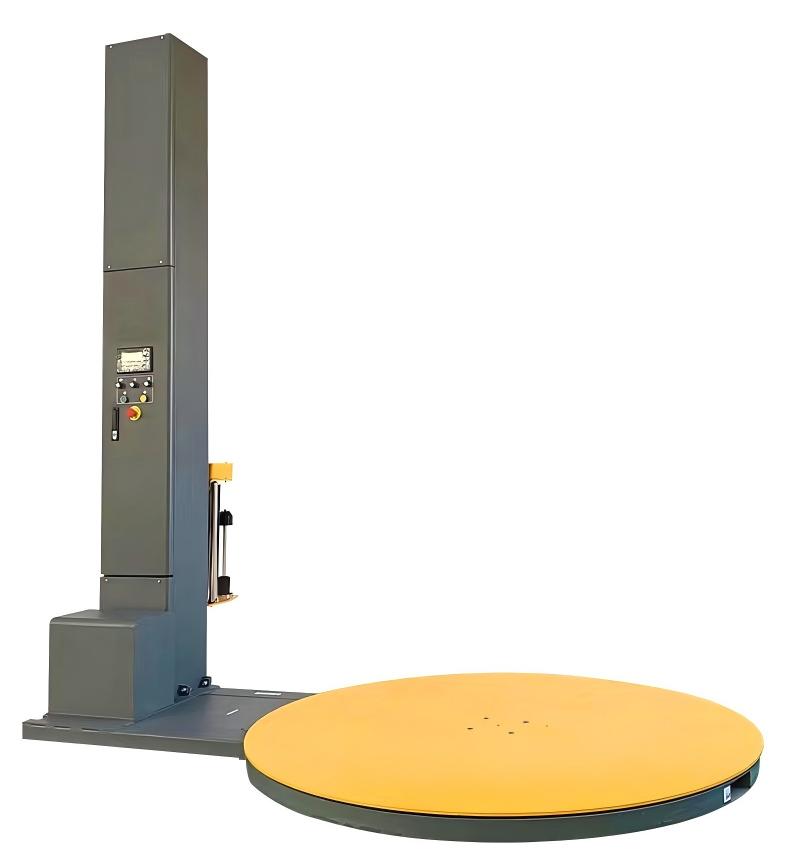

I. Product Name: RF500Y Stretch Wrapping Machine
Product Note: Turntable diameter: 1650mm (can be customized to 1500mm upon request)
Packaging height ≤ 2400mm (Column height 2700mm)
Load capacity: 2000 KG
Product Category: Pre-stretch / Turntable speed is frequency conversion adjustable
1. Main Technical Parameters
Turntable diameter: φ1650mm
Maximum packaging height for goods: 2400mm
Turntable height: 80mm
Turntable load capacity: 2000kg
Total power: 1.5kw
Power supply voltage: Single-phase 220V
Turntable speed: 3~14 rpm
Packaging material: LLDPE stretch film
Thickness: 17~35μm (recommended 20 or 25μm) Width: 500mm
![Stretch Wrapping Machine]()
2. Main Features
Display screen operation, user-friendly internationally universal panel icons, making operation more convenient and simple.
PLC programmable logic control for the entire machine operation, number of wrapping layers and wraps adjustable from 1 to 9.
Photoelectric sensor automatically detects the height of the goods.
Star-arranged wear-resistant support rollers for low-noise operation.
Turntable with variable frequency speed control, soft start/stop, and automatic reset.
Chain mechanism structure, film carriage rise and descent speeds can be set independently.
Film carriage pre-stretching mechanism (stretch ratio 250%), easy film feeding, starts with a pull.

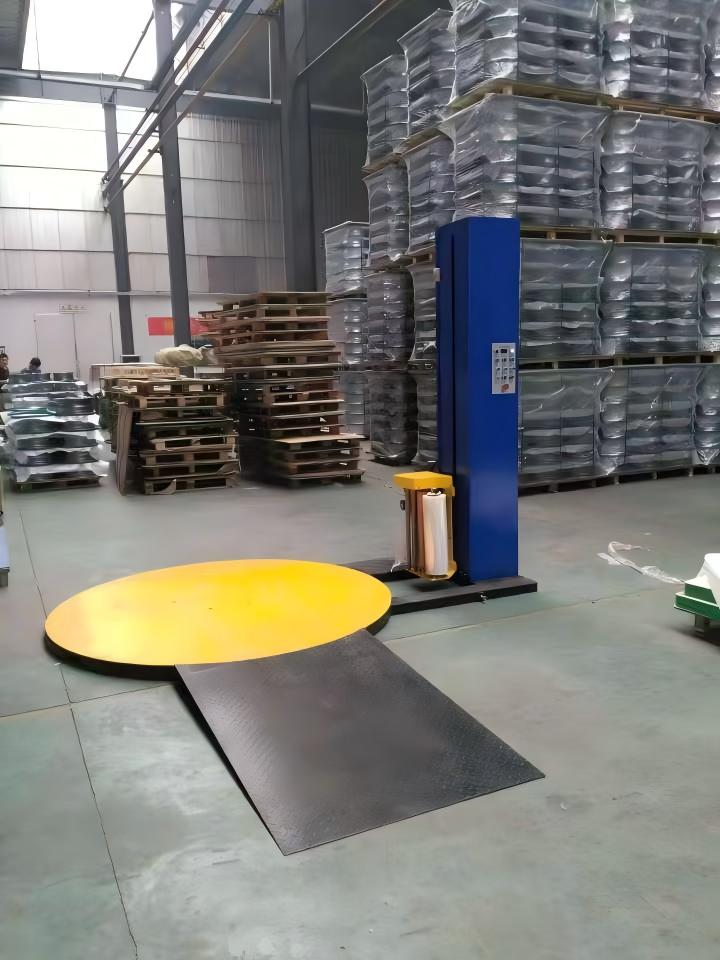

![Multifunctional Machine]()
Ⅱ. Product Model: RF500YM Stretch Wrapping Machine:
Product Note: Turntable diameter: 1650mm (can be customized upon request to 1500mm)
Packaging height ≤ 2400mm (Column height 2700mm)
Product Category: Pre-stretch / Automatic setting of wrapping layers
Packaging Process Description:
→ Set the number of wrapping layers and speed.
→ Fix the stretch film to the pallet to be wrapped.
→ Press the "Run" button, the wrapper operates according to the set parameters.
→ After wrapping is complete, cut the film manually to end the process.
1. Technical Parameters
1.1) Goods dimensions: Length 800-1200mm, Width: 800-1200mm, Height: ≤2400mm
1.2) Packaging efficiency: 10-30 pallets/hour
1.3) Turntable size diameter: 1650mm
1.4) Turntable load capacity ≤ 800kg
1.5) Turntable speed: 3-14 rpm
1.6) Machine weight: 600kg
1.7) Electrical control: Program-controlled automatic setting of wrap count, variable frequency speed control.
1.8) Motor power: 1.5KW (Turntable 0.75kw, Film carriage 0.4kw, Column 0.4kw)
1.9) Power supply: Single-phase 220v AC/50Hz/20A
1.10) Applicable film: 20-35μ machine stretch film
1.11) Forklift actual dimensions (Customers must confirm the following forklift data for custom fabrication to achieve ideal results):
Forklift Type 1: M-bottom customer parameters: Inner leg spacing 300MM, Forklift leg width: 190mm, Forklift leg length: 1150mm.
Forklift Type 2: M-bottom customer parameters: Inner leg spacing 390MM, Forklift leg width: 150mm, Forklift leg length: 1150mm.
Minimum ground clearance when forklift is raised ≥ 100mm.
2. Control System
(Includes turntable, lifting, film feed - 3 sets of motors, 3 inverters)
2.1) Display screen operation, user-friendly international panel icons, easier and simpler operation.
2.2) PLC programmable control for machine operation, number of wrapping layers and wraps adjustable from 1-9.
2.3) Equipped with top-override function for reinforcing the top of the goods. Top-override time adjustable from 1-9 seconds.
2.4) Top and bottom wrapping layers can be set separately.
2.5) Photoelectric sensor automatically detects goods height.
3. Turntable Drive
3.1) Star-arranged wear-resistant new nylon support rollers for low-noise operation.
3.2) Turntable with variable frequency speed control, soft start/stop, automatic reset.
3.3) Separate origin reset button on the operation panel.
![]()

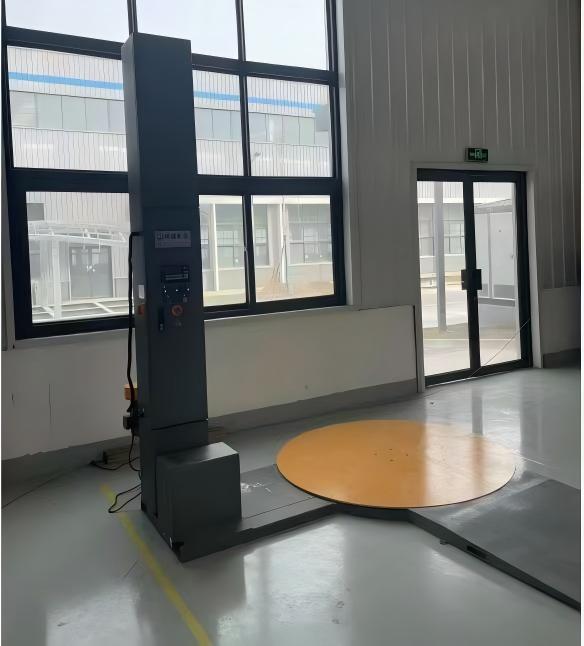

![Digital Stretch Machine]()

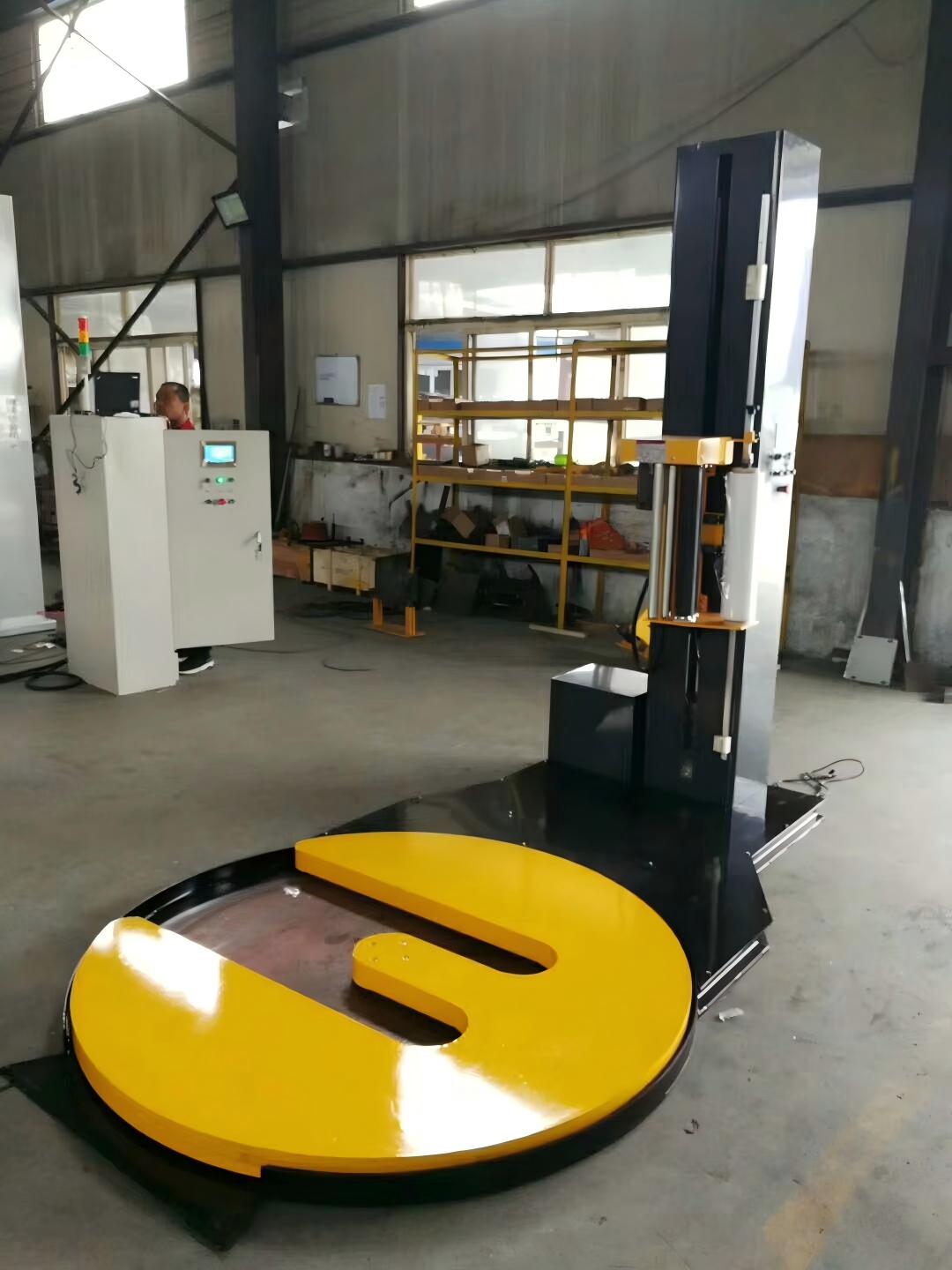

3.4) Chassis adopts M-fork pocket structure, sturdy and durable, convenient for handling.
4. Lifting and Film Carriage System
4.1) Dual-chain structure, film carriage rise and descent speeds adjustable separately, film feed speed adjustable via knob.
4.2) AC variable frequency film carriage system, maximum stretch ratio up to 300%, low noise, long lifespan.
4.3) Film carriage system with follow-up structure, motor activates upon pulling, safe and energy-saving.
5. Main Components (Selection of electrical control system):
(Table identical to the one above for RF500Y)
6. Warranty Terms:
The machine comes with a one-year free warranty service (excluding damage caused by human factors and wearable parts), lifelong maintenance. Parts will be charged after the warranty period.
7. Example Pictures:
(No specific caption provided for images in this section in the original)
Equipment Quotation: 22,500 RMB/unit, inclusive of 13% VAT, price includes delivery to Qingdao Port, excluding fumigation-free wooden case.

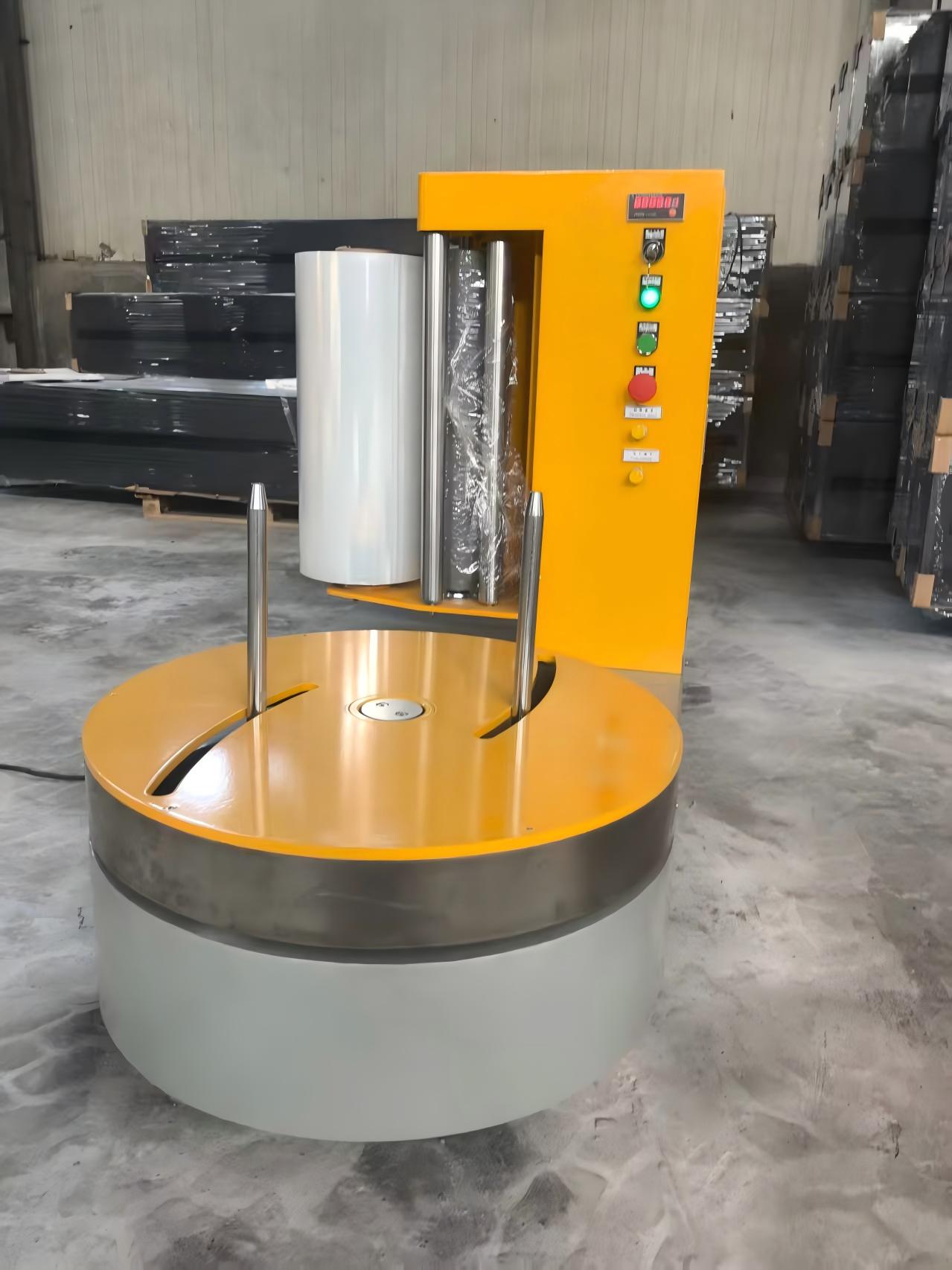

Product Name: RF600S Luggage Wrapping Machine
(1) Machine Model: RF600S (Luggage Wrapping Machine)
(2) Basic Equipment Parameters
★ Maximum packaging size: L(350-600)mm * W(180-450)mm * H(300-450)mm
★ Turntable height: 350mm
★ Turntable load capacity: 100kg
★ Machine weight: 200kg
★ Total power: 0.48kw
★ Power supply voltage: 220v (Single-phase) 50-60Hz
★ Turntable speed: 20-40 rpm
★ Applicable film: 15~35μ pre-stretch machine stretch film (recommended 25μ)
★ Equipment dimensions: 1200mm * 600mm * 1000mm
2. Packaging Material Basic Parameters:
Stretch film type: LLDPE pre-stretch stretch film (complies with relevant industry standards)
Stretch film width: 500mm
Stretch film roll core inner diameter: φ76.2mm
Stretch film thickness: 0.020mm-0.035mm
![Digital Stretch Machine]()
3. Equipment Features:
★ Powered pre-stretching mechanism on film carriage, pre-stretch ratio up to 250%.
★ Film tension can be adjusted directly on the operation panel.
★ Number of wraps can be adjusted directly via the program on the operation panel.
★ Operator manually adjusts vertical rods to ensure safe and stable positioning of goods.
★ Film system with follow-up mechanism, starts with a pull.
★ Turntable system, linear guide controls the goods clamping device.
4. Main Electrical Configuration
Relay (2 pcs): OMRON
Frequency Inverter (1 pc): FATEK or Tianchuan equivalent
Proximity Sensor (1 pc): OMRON
Film Feed Motor: Boshan
DC Speed Controller: Boshan
5. Mechanical Components
Frame is constructed from steel plate, welded and spray-painted.
6. Installation:
The equipment installation location and floor should be level.
The space above the equipment must be clear of other installations.
The equipment must have an independent power source; sharing a power source with other equipment is strictly prohibited.
